METLAM GRAVITY HINGE

– Alloy ZP3 diecast zinc
– 304 grade stainless steel shaft
– Nylon inserts



Satin chrome plate

Screw fix



– Hold open or hold closed

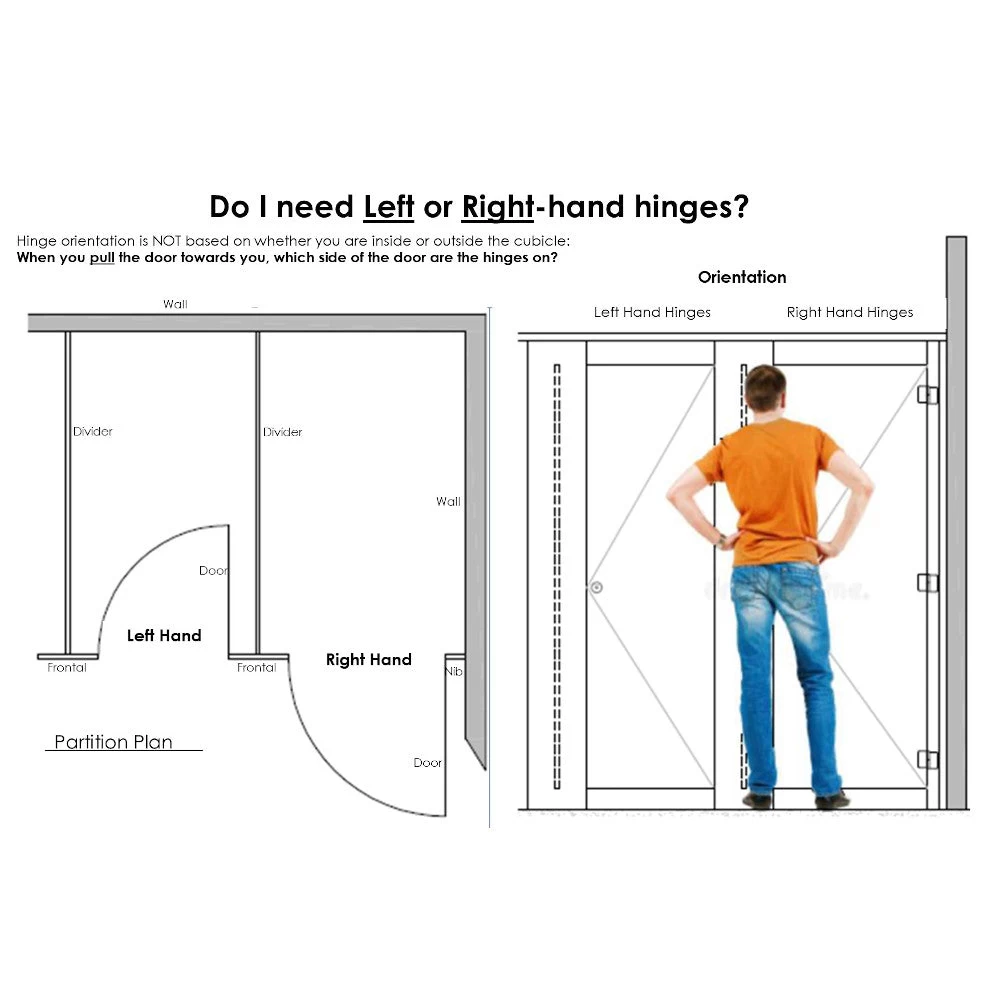

– Right or left hand; see hinge orientation image for more information.



15Kg per hinge
For optimum performance:
– 2 hinges per door up to 30Kg
– For doors over 30K allow for 15Kg per hinge



– Fixing screws not included

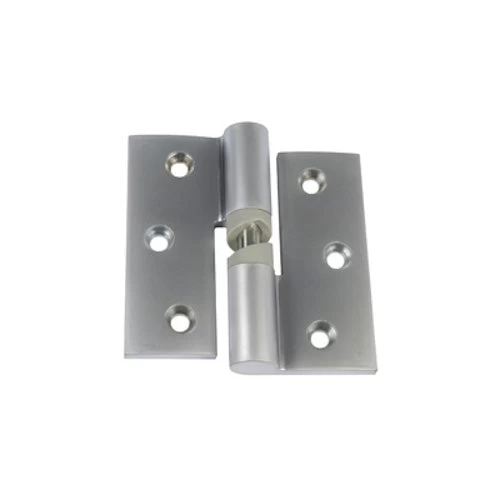

– Right hand hinge shown
– Screws for 13mm board (10g x 1/2 CSK)
– Screws for 18mm or bigger board (10g x 3/4 CSK)
– Gravity hinges contain no mechanical components. Functionality of these hinges can vary depending on the environment.
