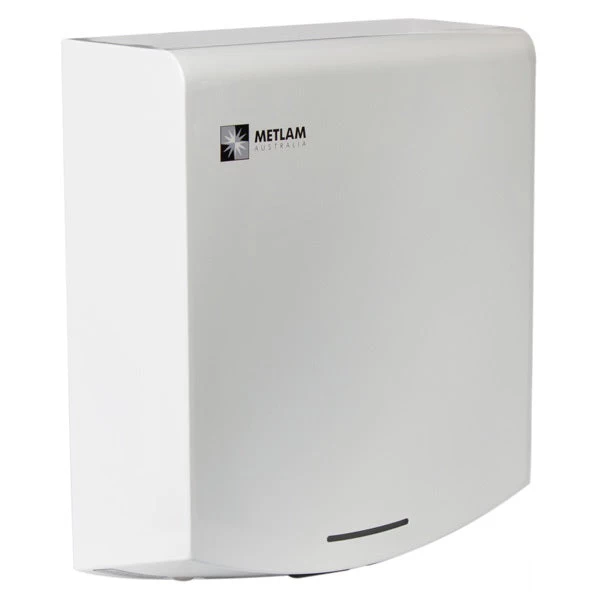

METLAM ECLIPSE SLIMLINE AUTOMATIC OPERATION HAND DRYER

Specification

Material:

• 1.2mm #304 Satin Stainless Steel

Specify:

• ML_ECLIPSE05_SS: Stainless Steel
• ML_ECLIPSE01_WHT: White Powder Coat Steel
• ML_ECLIPSE_DESIGNER: Designer Matte Black

Features:

• Touch-free Patented high-flow dual air outlets

Electrical Supply Voltage & Frequency:

• 220-240 Volts, 50Hz

Standby Power Consumption:

• Less than 0.5 Watts

Dry Time (Max Setting):

• Less than 15 seconds

Motor Speed (Max Settings):

• 29,000 RPM

Motor Speed (Min Settings):

• 16,000 RPM

Motor Speed Notes:

• 250-500W Brush Type, Dual Ball Bearings, 95° auto reset overload

Air Speed (Max Settings):

• 115m/s ==257 MPH

Air Speed (Min Settings):

• 95m/s ==212 MPH

Heater Element Power:

• 325-500 Watts, adjustable

Motor Cut-Off Time:

• 60-second power cut off, auto reset

Rated Power (Max Settings):

• 1000 Watts

Rated Power (Min Settings):

• 575 Watts

Related Power Notes:

• Motor 250-500W, Heating Element 325-500W

Energy Per Dry (Max Setting):

• 4.17 Watt-hours (Wh)

Energy Per Dry (Min Setting):

• 2.4 Watt-hours (Wh)

Operating Sound Level (Max Or Min Setting):

• 72db

Sound Level Notes:

• 72db (+-3)@1M db

Sensor Type:

• Infrared Automatic – 152mm +/-20mm present blue LED indicates operation/range
• IP Rating IP24

Carbon Dioxide Emission:

• 305g Only

Heater:

• Auto resetting thermostat turns unit off at 85°C

Protection:

• 60-sec power cut off, auto reset

Case Security:

• 2 SS theft-resistant hex drive screws (hex key supplied)

Net Weight:

• 4.2kg

Dimensions:

• 220mmW x 287.9mmH x 100mmD

Warranty:

• 5-Year Warranty (3 Years Parts and Labour+ 2 Years Parts only)

Note
* The unit can be hard-wired by an electrician or used with the cord and plug provided

* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
