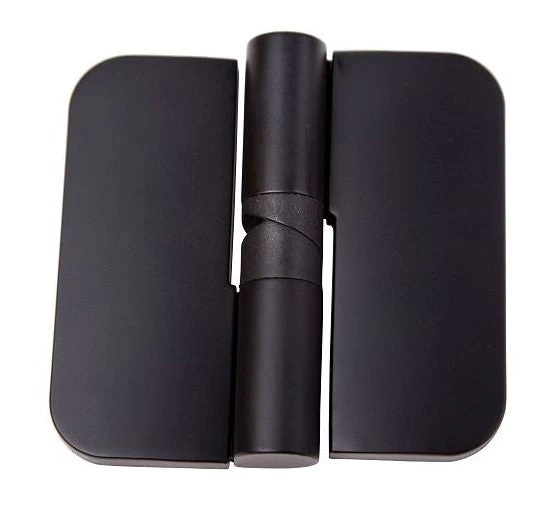

METLAM 106C GRAVITY HINGE DESIGNER MATTE BLACK – CONCEALED FIX OR BOLT THROUGH

Specifications

Material:

• Diecast Zinc, Alloy ZP3
• #304 Stainless Steel Shaft
• Nylon Inserts, ABS Snap On Covers

Finish:

• Designer Black

Mounting:

• Concealed Screw Fix or Bolt Through

Minimum Hinge Clearance For Lift Off Hinges:

• 30mm

Specify:

• 106C_LHHC_DESIGNER: Left Hand, Hold Closed. Assists door to move towards Hold Closed position
• 106C_LHHO_DESIGNER: Left Hand, Hold Open. Assists door to move towards Hold Open position
• 106C_RHHC_DESIGNER: Right Hand, Hold Closed. Assists door to move towards Hold Closed position
• 106C_RHHO_DESIGNER: Right Hand, Hold Open. Assists door to move towards Hold Open position

Features:

• Gravity assisted door opening with lift off capability.

Load Rating:

• 15Kg per hinge

For optimum performance:

• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge

Note: 3 Hinges per door is recommended to prevent door bowing
