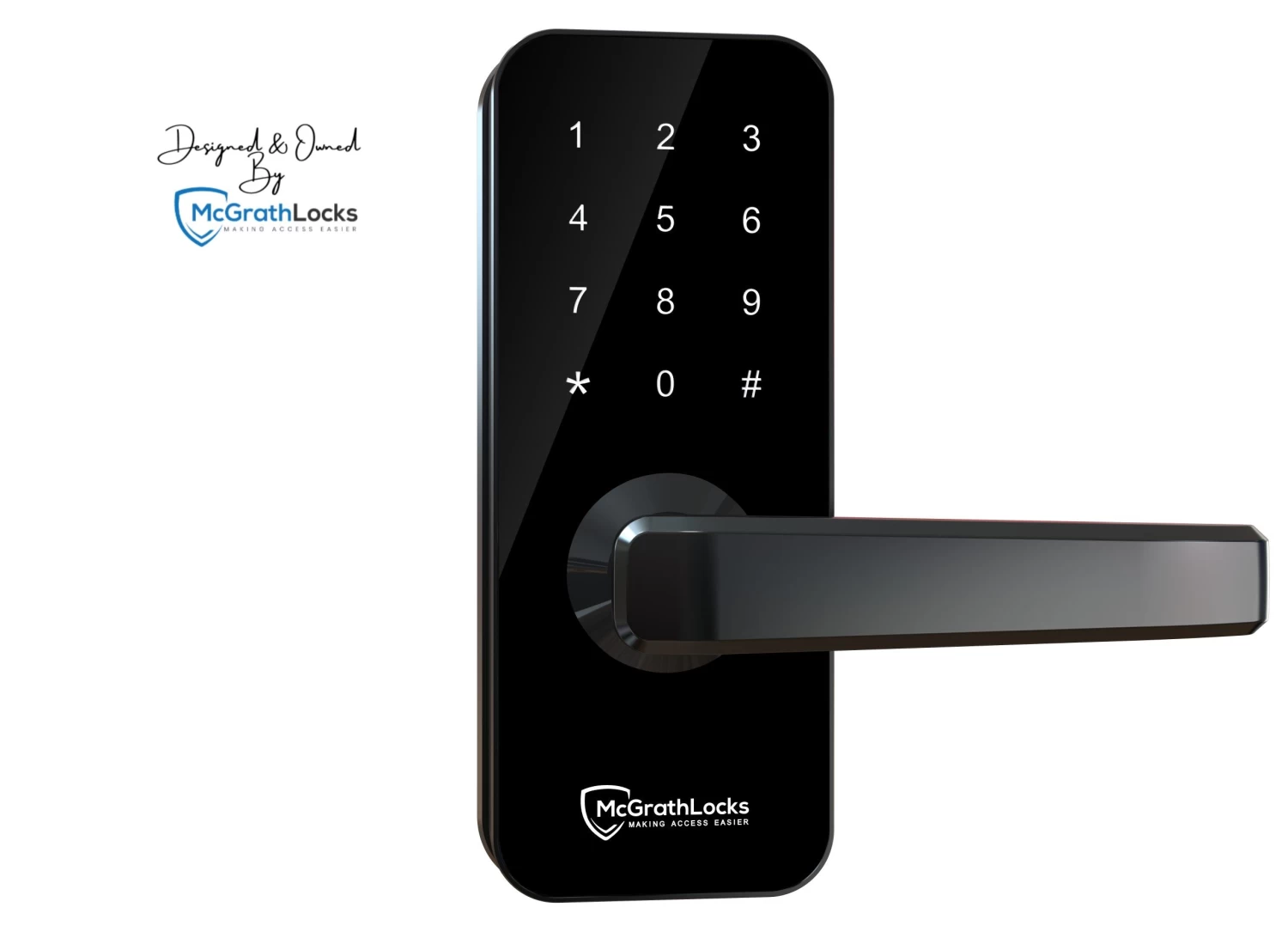

McGrath Digital Lock – Windsor

This Fire Rated 4 in 1 Digital Door Lock is perfect for any buildings or apartments needing a fire rated lock.
A sleek door lock with Bluetooth app, pin code, RFID card and manual key to provide quick and convenient access.

• Emergency battery override on external handle
• Mechanical override key for emergency purposes
• Multiple code settings and functions, including one of codes and timed access
• Anti-theft alert
• Dual electric system design
• Anti-Peep Code: User may enter any random digits before or/and after the correct code and can still gain access, make sure strangers can’t steal your code by watching you nearby when you enter the code
• Lock Timeout: Input wrong password 5 times, the keypad will be locked for 5 minutes

Lock can be supplied with or without commercial grade mortice lock

• WINDSOR Fire Rated Digital Bluetooth Lock (No Mortice) Black
• WINDSOR Fire Rated Digital Bluetooth Lock Mortise locks works with the DormaKaba MS2602, MS2902



Specifications:

• Unlocking methods: Bluetooth TT lock APP, Pin Code, RFID card, Manual Key
• Use fire retardant plastics
• Material: Aluminium alloy and glass keypad
• Power supply: 4pcs AA Alkaline battery
• Lift up the handle from outside to engage the deadbolt
• Micro USB interface design for backup power
• Low Battery Notification: when battery is lower than 4.8V, buzzer will make alert while each unlocking.
• Communication mode: Bluetooth 4.1ble
• Support system: Android 4.3 /IOS 7.0 above
• Door Thickness: 35 – 54mm automatic adjustment
• 304 stainless steel mortise lock body
• Energy-saving design
• Hidden Emergency key hole
• User Capacity: 300 groups
• Code Scrambling: Yes
• Length of Code: 6-12
• Available Lockcase: Single latch 60mm/70mm and double deadbolt
• Card Working Frequency: 13.56MHZ
• State current: ≤ 65uA
• Motor working current: ≤ 200mA
• Working Humidity: 10% ~ 97%
