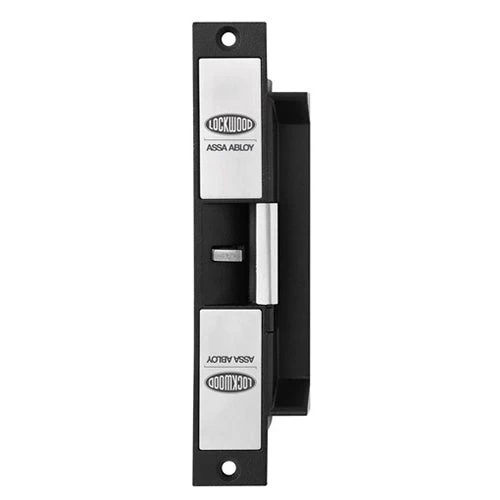

The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.

They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.

Key Features

Fully monitored – strike locked and door latched
Fail safe/fail secure (changeable on site)
High security
4 Hour fire rating
850kg holding force
1 million cycles endurance rating
Cast stainless steel body
Stainless steel locking pins
SCEC Endorsed
Low Current consumption – Max 175ma @12Vdc
Solenoid rated for continuous use
Mounting kit supplied as standard
TRICARE® 5 Year Warranty

Applications

High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems

Standards and Compliance

S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
BS 5872 Approved
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
C-Tick Certified
SCEC endorsed for secure areas

Specification

Voltage
12Vdc

Current
175 mA @ 12Vdc

Solenoids
Solenoids are rated for continuous use

Monitoring
Solenoid Monitor – 1 amp NO/NC microswitch
Door/Latch Monitor – 1 amp NO/NC microswitch

Holding Force
850kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Latch
Suitable for 15mm latch bolt with 3mm door gap

Environment
Operational temperature range – 20°C to +60°C

Body
Solid Stainless Steel Construction

Keeper
Stainless Steel

Specification Statement
The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. Monitoring must include independent door / latch& solenoid monitoring. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use. Certifications must include CE, C-Tick and 4 hr fire rating.

_________________________________________________________

Dimensions
