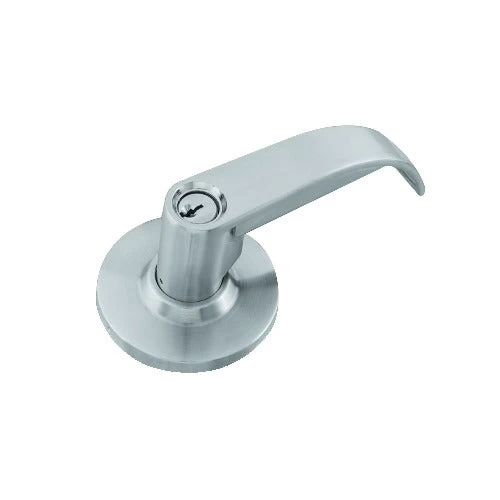

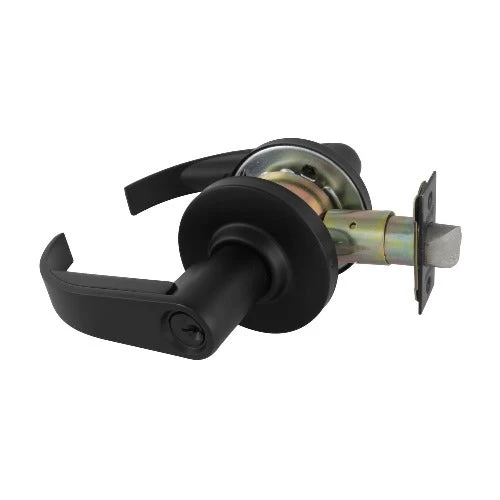

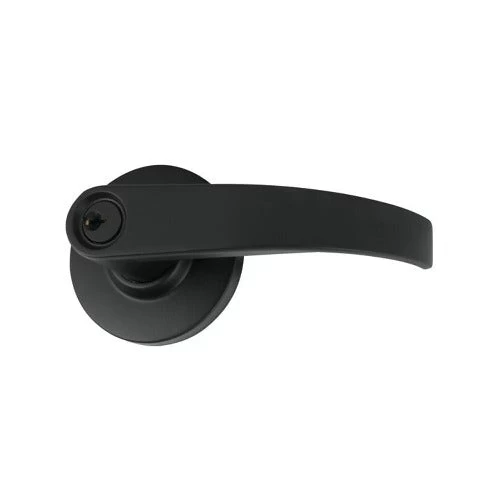

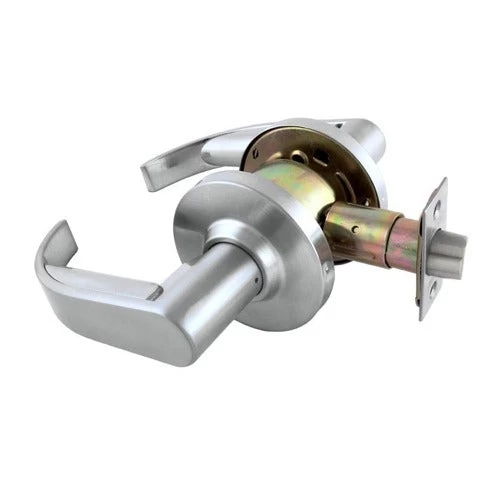

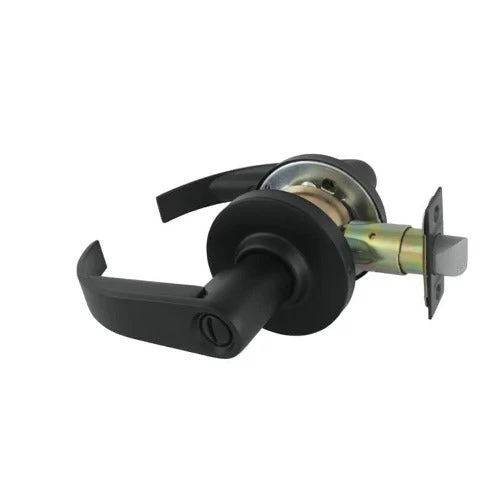

LEGGE G2 SPARTA DDA COMMERCIAL LEVER SETS

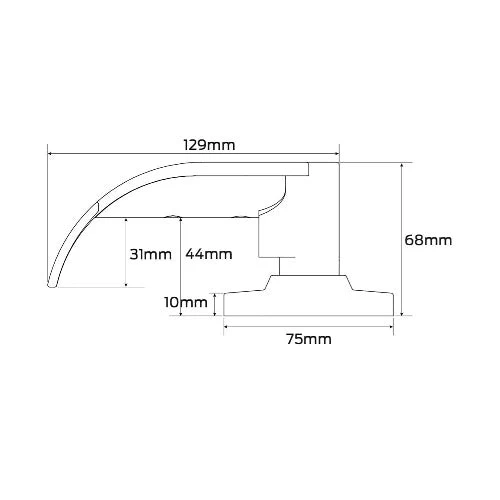

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it’s 35mm to 45mm clearance.

Features:

• Sparta lever is compliant with AS1428:1-2009 design for access and mobility code
• Tested in excess of 400,000 operating cycles
• Key removable outside lever for quick and easy cylinder placement
• Snap-on inside rose conceals mounting plate and screws
• Supplied standard with D and T strikes and spacer rings
• Two nickel silver keys per lock supplied with both
• Schlage 6 pin ‘C’ keyway and C4 6 pin keyway as standard
• The G2 series is ideally suited for residential, light and medium duty commercial applications
• Non-handed
• The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

• Chassis Steel: Zinc dichromate plated
• Lever: Pressure cast zinc
• Outer Forend: Stainless steel
• Bolt: Stainless steel
• Strike Plate: Stainless steel 45mm standard
• Backsets: 70mm Standard, for 60mm backset you will need to purchase a G2-60DLS Latchbolt
• Key: Cylinder Brass, Schlage C6 pin keyway and C4 6 pin keyway standard
• Door Type: Timber or Metal
• Door Thickness: 35mm to 50mm
• Finish: Satin chrome plate / Matt Black
• Warranty: 10 year mechanical



Legge G2 Prodct Info
