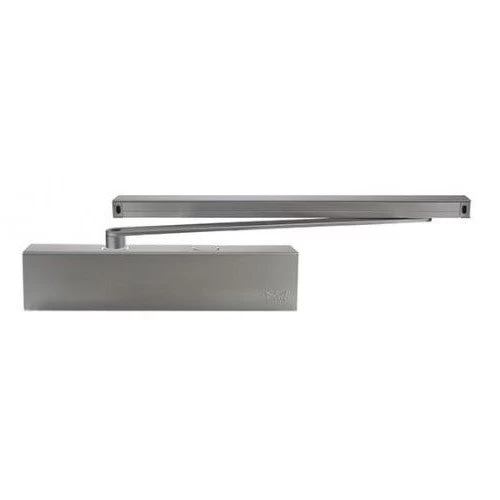

DORMA DOOR CLOSER TS93G EN1-5 (PUSH SIDE)

The DORMA TS93GN closer is a non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions. Closing force adjustable with a screw and closing speed adjustable with a valve. The latching speed, backcheck and delayed action is also adjustable at the valve. It has a slide channel arm assembly.

Special model for push-side door leaf fixing/pull-side transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for single and double doors installation up to 1250mm (W).

Finished in silver.

Angle bracket not supplied.

Dimensions	Weight
275mm (L) x 53mm (W) x 60mm (H)	3.5kg
