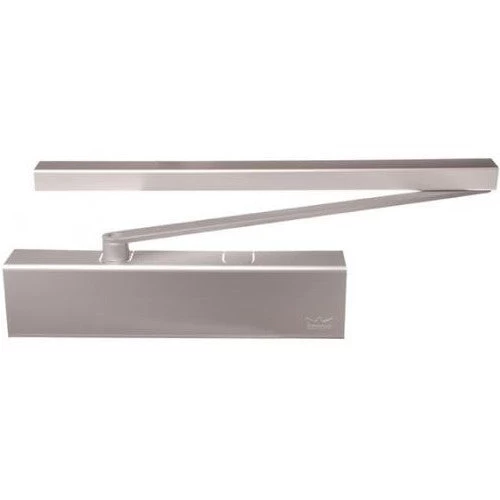

DORMA DOOR CLOSER TS92B EN1-4 (PULL SIDE)

The DORMA TS92B closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° – 15° and a latching action independently adjustable with a closing action of 15° – 0° with two separate vales.

Standard model for pull-side door leaf fixing/push-side transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for installation on doors up to 1100mm (W).

Dimensions	Weight
281mm (L) x 47mm (W) x 65mm (H)	2.0kg
