BRAVA URBAN ENTRANCE KNOB T6 SERIES

BRAVA Urban BRT6900 series entry knobset. Domestic grade entrance knobset.

Entrance function

• Key outside locks and unlocks both knobs.
• Turnsnib inside, locks and unlocks both knobs.

Additional info

Tiebolt fixing.

Silca LW4 profile.(Rekeyable to 6 pin LW5).

Construction keyable on all chambers.(Using BRUCKBALL)

Tulip knob design

2 keys supplied.

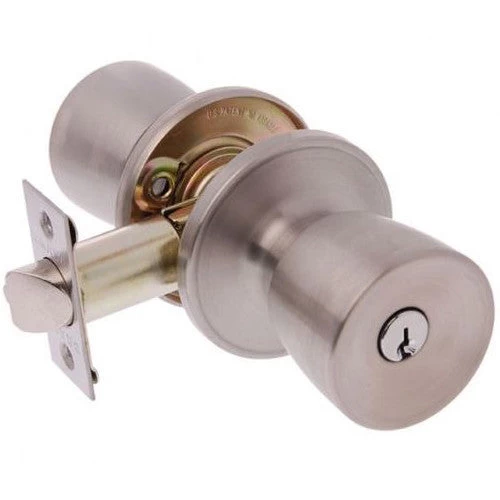

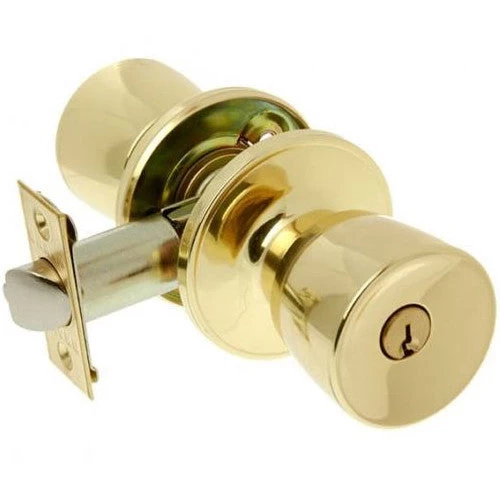

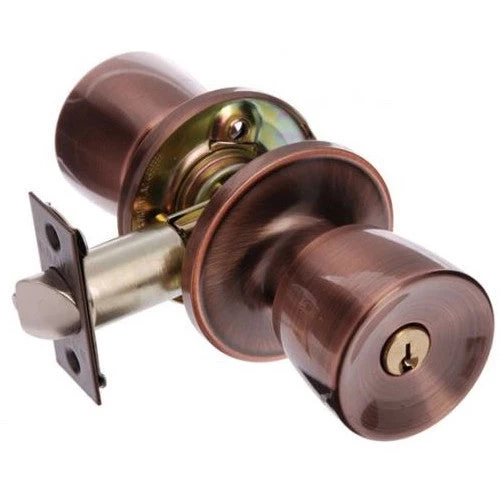

Finished in satin chrome, polished brass or antique copper.

Supplied boxed (and colour coded) with mounting hardware.

Door thickness	35-45mm
Backset	adjustable 60/70mm
max. Lever / knob projection distance may not include turnsnib	64mm
Strike	70mm x 27mm x 1.2mm
Latch	adjustable 60/70mm
Latch face plate	57mm x 25mm
Cylinder	LW4 profile (C4)
Door handing	Non-handed knobs
Rose	66.5mm
