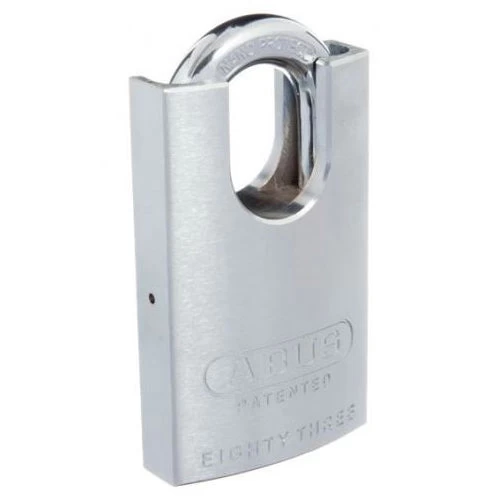

ABUS PADLOCK 83CS/50 SERIES CLOSED SHACKLE

ABUS 83CS/50 series padlock

• Keyed to differ.
• 50 mm heavy duty nickel plated brass lock body.
• Close shackle.
• Double ball locking.
• Special alloy shackle with Nano-Protect™ plating.
• 25 mm shackle as standard.
• 9.5 mm shackle diameter.
• Removable cylinder assembly for quick rekeying.
• Incorporates the popular 570 6 pin style barrel.
• Silca LW4 keyway.
• Compatible with most restricted keying profiles.
• Quick change shackle feature.
• Easily converted from snap shut to key captive function.
• Range of replacement shackles.
• Supplied boxed.

Dimensions

a	Body width	48 mm
b	Horizontal Shackle Clearance	22 mm
c	Vertical Shackle Clearance	27 mm
d	Shackle diameter	9.5 mm
